Standard hydraulic cylinder of tunneling boring machine

Dahong Hydraulic is a powerful enterprise that integrates the research and development, production, and sales of hydraulic cylinders. The products mainly cover hydraulic cylinders for rock drilling rigs, tunneling machines, railway equipment, and so on. Hydraulic cylinders have the characteristics of high power density, smooth motion, high-precision control, high reliability, and excellent structural design.

Model:

K.290.023.YG

17706179858

shaominjiao@wxdahong.com

E-mail

Online Message

Product Details

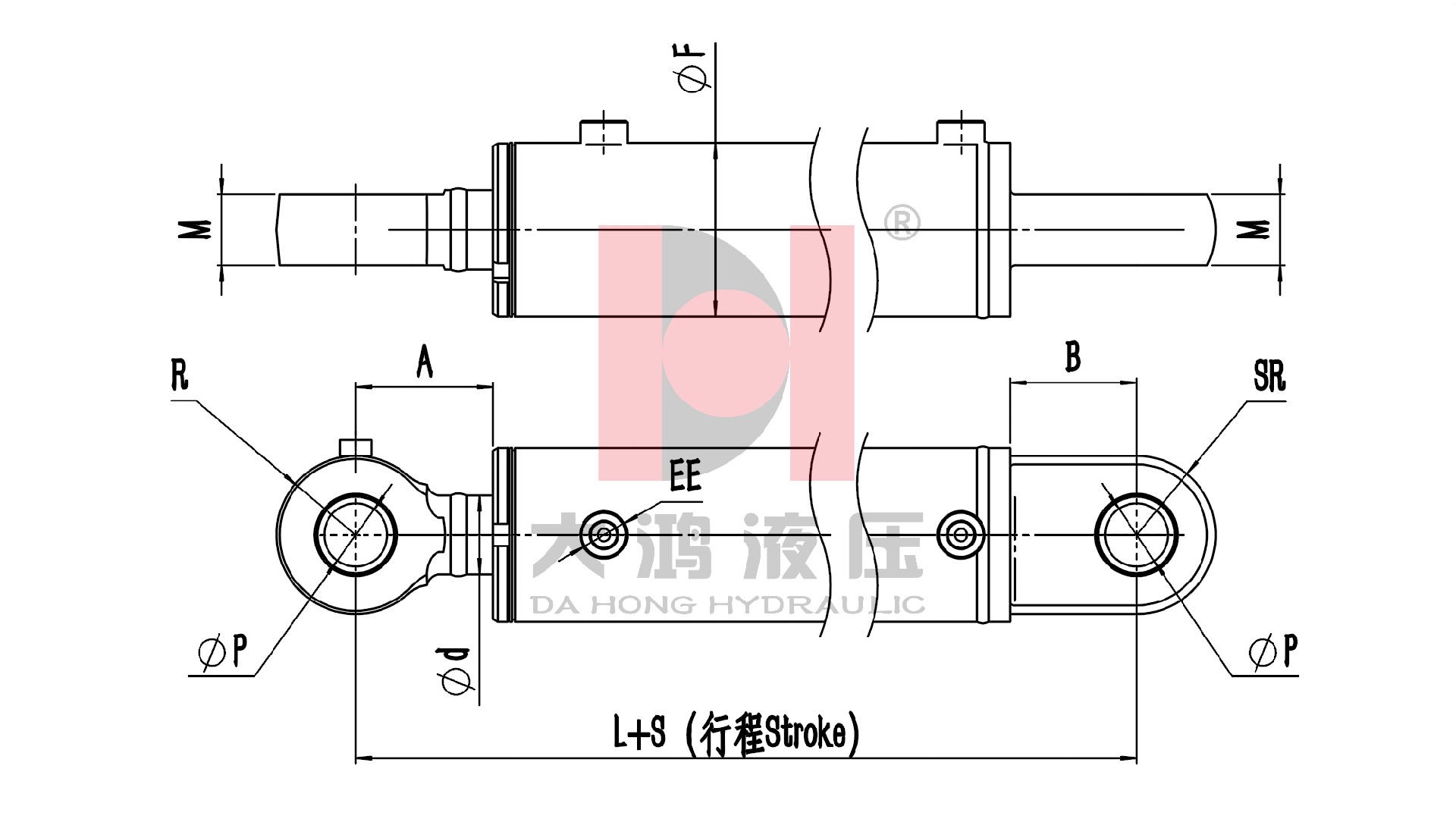

ΦD bore diameter	Φd rod diameter	EE screw thread	A≥	B	ΦF	SR	L	M	Φp	R
160	100	G3/4	120	125	194	97	493	100	100	100
160	110	G3/4	120	125	194	97	493	120	100	105
180	110	G3/4	125	125	219	110	506	120	110	105
200	110	G3/4	160	160	240	120	618	100	100	105
	125	G3/4	160	160	240	120	618	120	110	110
	130	G3/4	160	160	240	120	618	100	100	110
	140	G3/4	160	160	240	120	618	100	110	120
220	140	G3/4	170	160	268	135	641	125	140	145
220	160	G3/4	150	160	268	135	621	120	110	110
250	125	G3/4	200	190	295	147	746	125	140	125
	140	G3/4	200	190	295	147	746	125	140	145
	160	G3/4	200	190	295	147	746	120	110	110
	160	G3/4	200	190	295	147	746	120	140	140
