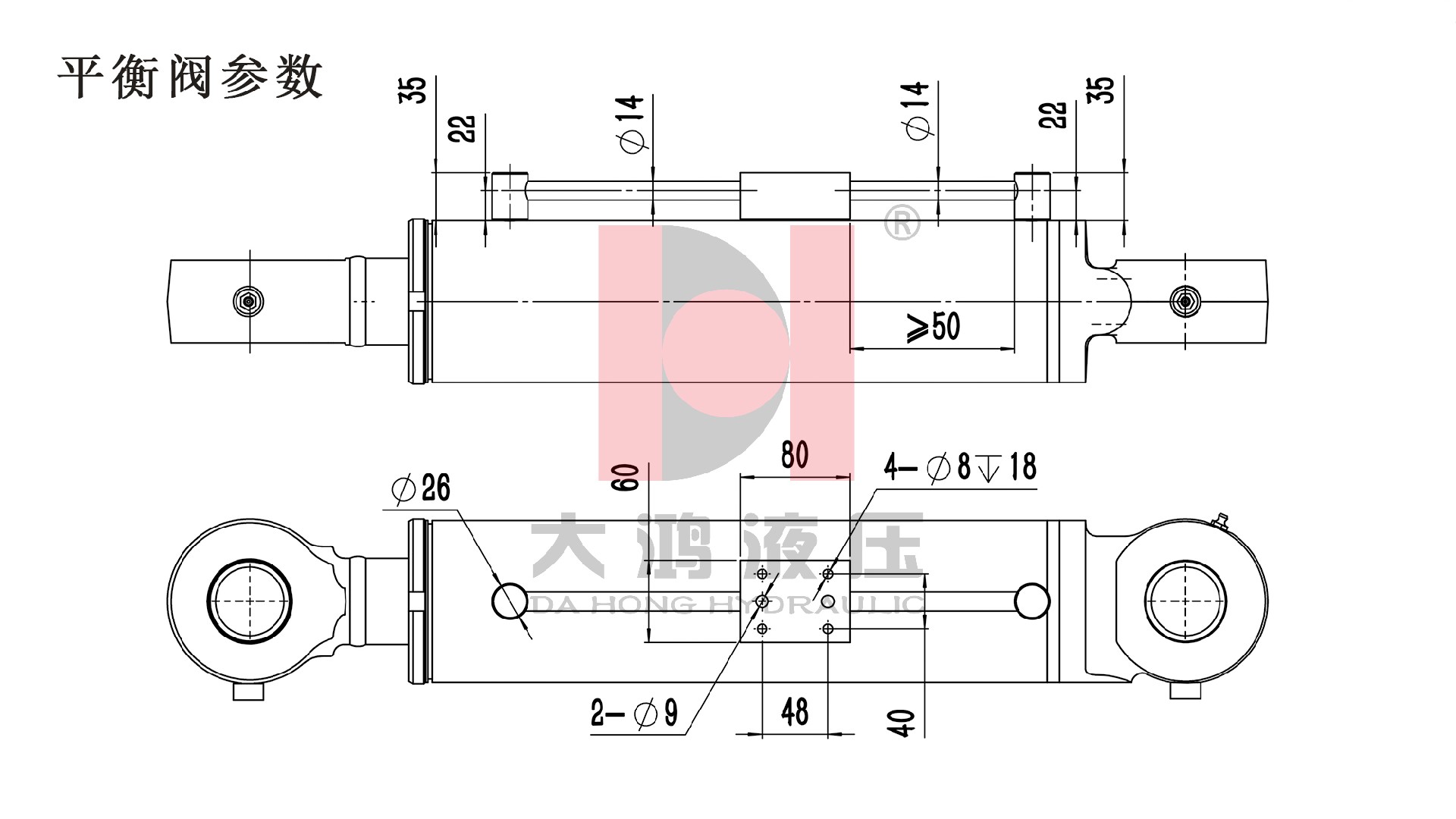

Front and rear earrings with balance valve standard hydraulic cylinder

Dahong Hydraulic is a powerful enterprise that integrates the research and development, production, and sales of hydraulic cylinders. The products mainly cover hydraulic cylinders for rock drilling rigs, tunneling machines, railway equipment, and so on. Hydraulic cylinders have the characteristics of high power density, smooth motion, high-precision control, high reliability, and excellent structural design.

Model:

K.040.084.YG

17706179858

shaominjiao@wxdahong.com

E-mail

Online Message

Product Details

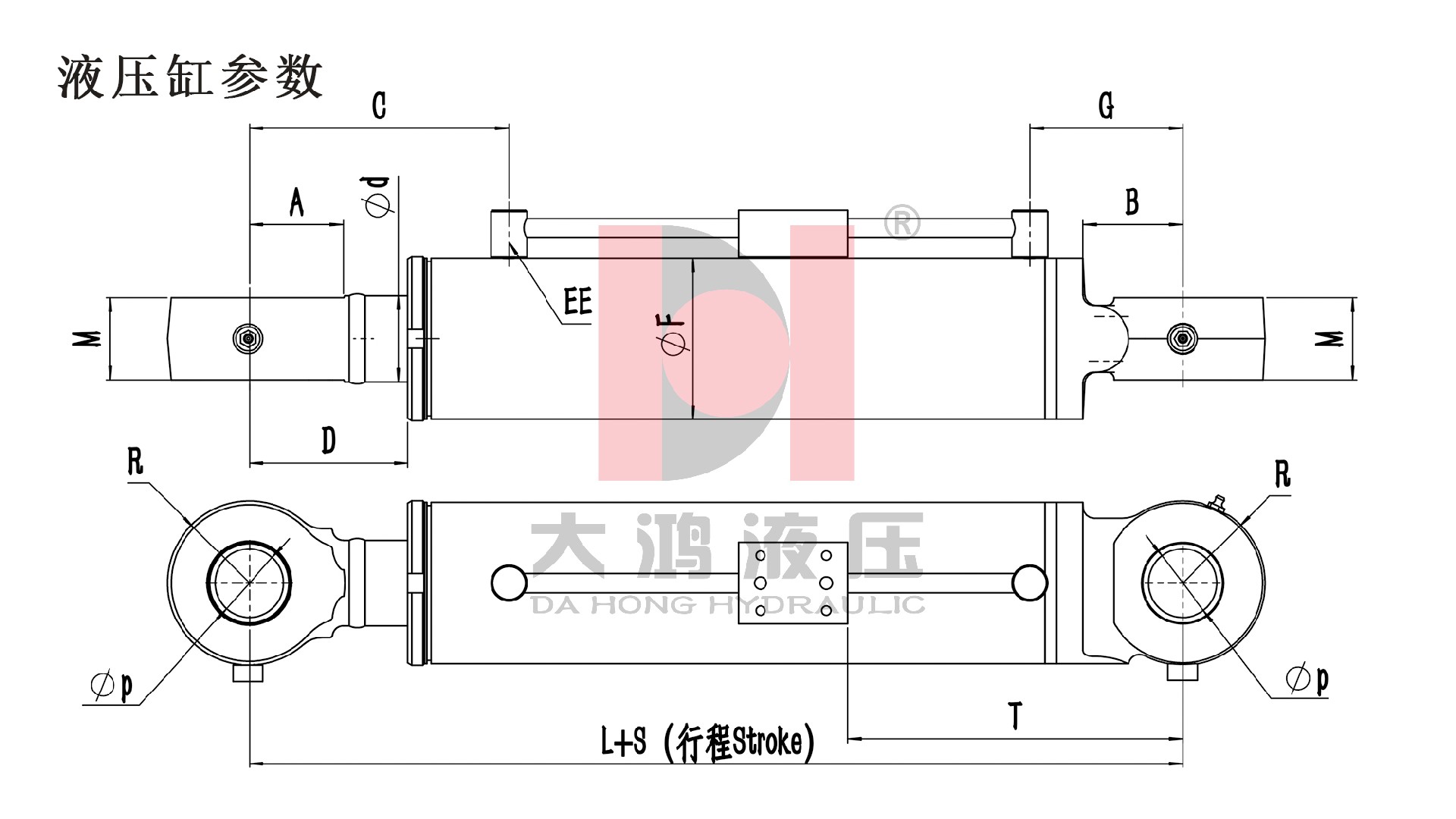

ΦD bore diameter	Φd rod diameter	EE Tubing connection	A	B	D	C	ΦF	G	T（≥G+63）	L	M	Φp	R
Φ40	Φ28/Φ25	263514.5	28	35	44	42	Φ50	56	119	190	30	Φ20	25
Φ50	Φ35/Φ32/Φ28		35	40	54	56	Φ65	61	124	220	30	Φ25	32.5
Φ63	Φ45/Φ40/Φ35		45	50	65	56	Φ76	83	146	253	35	Φ30	40
Φ70	Φ50/Φ45/Φ40		45	50	66	64	Φ85	87	150	279	45	Φ35	40
Φ80	Φ55/Φ50/Φ45		50	55	71	69	Φ95	95	158	297	50	Φ40	45
Φ90	Φ63/Φ55/Φ50		55	60	77	69	Φ108	100	163	308	55	Φ45	50
Φ100	Φ70/Φ63/Φ55		69	70	90	73	Φ118	113	176	351	60	Φ50	60
Φ110	Φ80/Φ70/Φ63		75	75	96	73	Φ130	120	183	362	70	Φ60	65
Φ125	Φ90/Φ70		80	80	101	78	Φ146	127	190	386	70	Φ60	70
Φ130	Φ90		80	80	101	82	Φ152	128	191	391	70	Φ60	70
